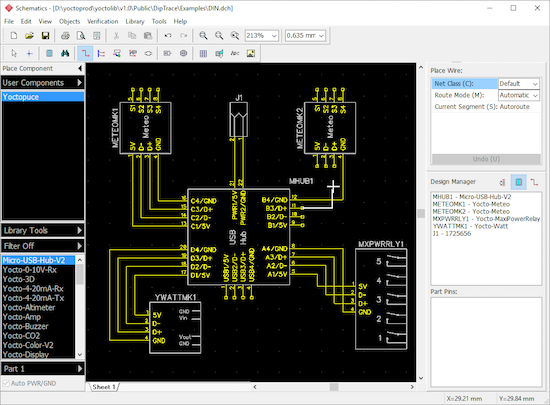

This simple little design probably won’t be anything like the schematics that you are working on, but the basic steps of data transfer from schematic to circuit board will be the same. We’ll take a look here at a very simple PCB schematic and see what needs to be done to synchronize it with a brand new PCB design.
Whatever the reason, you are ready to start working on the board side of PCB design, but you’re not sure how to create it from a PCB schematic in Altium Designer.įortunately, the next step in Altium Designer is very straightforward. Maybe your regular layout resources aren’t available, or perhaps you want to try to do your first layout yourself. The circuitry is defined and you are ready to go to PCB layout. You’ve done your usual excellent job of putting together the PCB schematic.
